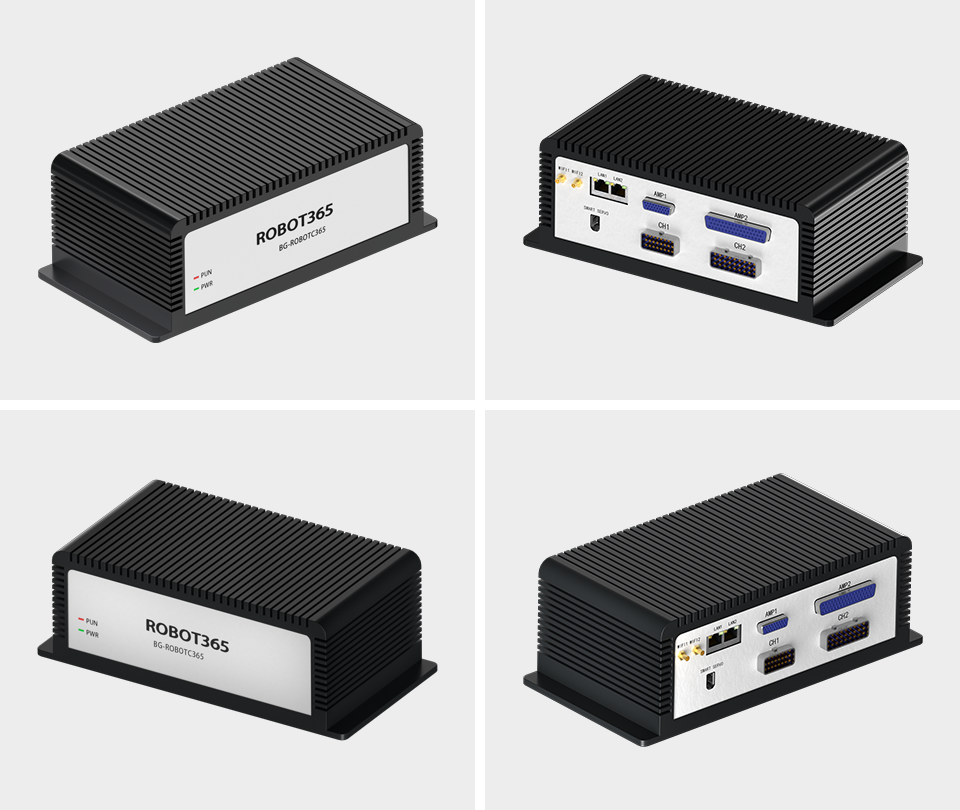

| ●Standard configuration ○Optional | model | BG-ROBOTC365 |
| Functional safety | Safety integrity level | IEC 61508 SIL2 |
| Safety performance level | ISO 13849-1 Cat.3 PLd | |
| Controller performance | CPU | Cortex A72 * 2 + Cortex A53 * 4 + Cortex M4 * 2 |
| Memory | 4GB LPDDR4 | |
| First hard disk | 128GB eMMC | |
| Second hard disk | 16GB eMMC | |
| Digital I/O | Power DO | 4-way（Single circuit load 24V/1A, 4-circuit total load capacity not exceeding 5A） |
| DO | 12-way | |
| DI | 24-way（NPN or PNP） | |
| Bus interface | CAN | 3-way |
| RS485 | 3-way | |
| Battery communication interface | 1-way（CAN/RS485/RS232 Switchable） | |
| Sin/Cos Encoder interface | 2-way | |
| communication protocol | Modbus RTU(RS485),Digital I/0 TCP/IP,CAN2.0A | |
| network interface | Ethernet | 5-way Gigabit (TSN) |
| Wi-Fi | Dual-band 2.4G/5G 802.11ac 2T2X | |
| LTE/5G | ○ | |
| Special functions | One touch power on | 1-way |
| motion | 1-way | |
| Emergency stop input | 1-way | |
| Emergency stop output | 2-way | |
| function | Basic functions | ● |
| Multi process control | ● | |
| Pulse control | ● | |
| bus control | ● | |
| Remote expansion | ○ | |
| Soft limit | ○ | |
| collision detection | ○ | |
| Working environment parameters | Operating temperature and humidity | temperature：-30~55°C / humidity：10~90%，Non compression condensation |
| working voltage | 22~55V/150mVpp | |
| Operating current | <1A（Without DO output current） | |
| IP rating | IP65 | |
| ISO cleanroom class | 6 | |
| L * W * H | 310*133*91mm | |
| weight | 2.63kg | |
| Product certification | CE | accord with EN 61010-1:2010，CE-EMC (IEC 61326-1)， IEC 61508 SIL2，sISO 13849-1 Cat.3 PLd |
